OpenCV Series — 8 — Virtual Makeup — Augment Sunglasses on eyes

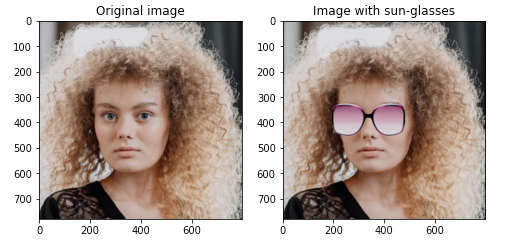

In this post, we are going to see how we can use Dlib’s face detection landmarks to augment the sunglasses to a person’s image. In my previous Dlib posts i had explained where to download the Dlib pre-trained 68 point face prediction model and the code to detect the landmark points on a facial image.

Now, we will go through the steps involved in identifying the right points in a face image to place the sunglasses on the eyes.

Step: 1:

Detect the landmark points in an image

Step: 2:

Detect the distance between points.

Identify the distance between Points[0] and Points[16] to get the length of the face and round it to the nearest hundred value.

import math
dist = points[16][0] - points[0][0]
# Round the distance between Point[0] and Point[16] landmark
# on the x-axis to the nearest 100 values
# (i.e a distance 278 will be rounded to 300)
dist = int(math.ceil(dist / 100.0)) * 100

Step : 3:

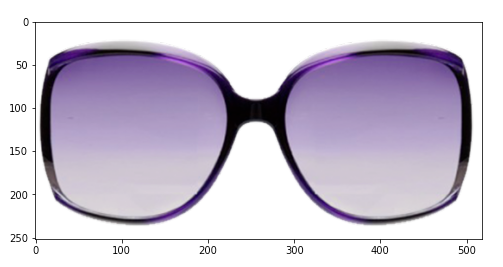

Resize the sunglasses image based on the distance identified so it fits right between Points[0] and Points[16]

• read the sunglasses image file with alpha channel

glasses = cv2.imread("glasses1.png",-1)

dw = dist
dh = int(dw * 0.50)
glassesResize = cv2.resize(glasses,(dw,dh))

Step: 4:

Extract the RGB channels and the alpha channel to separate variables

glassesOriginal = glassesResize[:,:,0:3]
glassesOriginal = cv2.cvtColor(glassesOriginal,cv2.COLOR_BGR2RGB)
maskGlasses = glassesResize[:,:,3]
